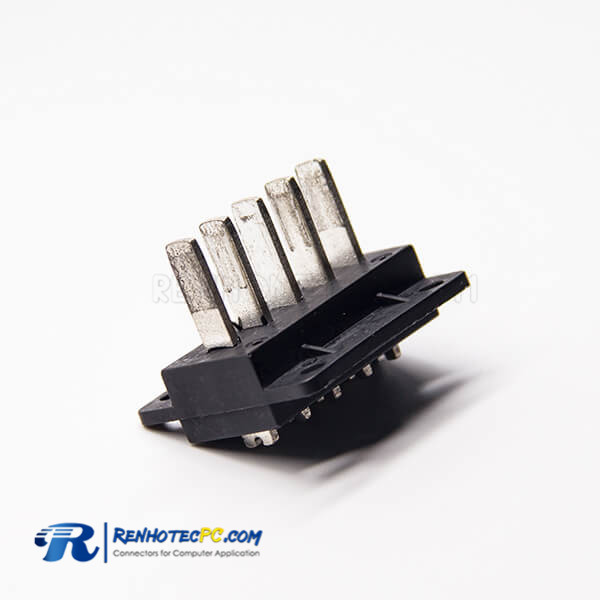

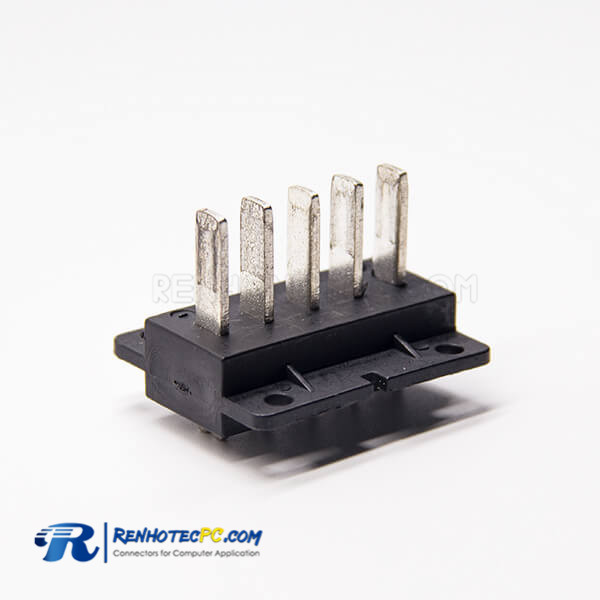

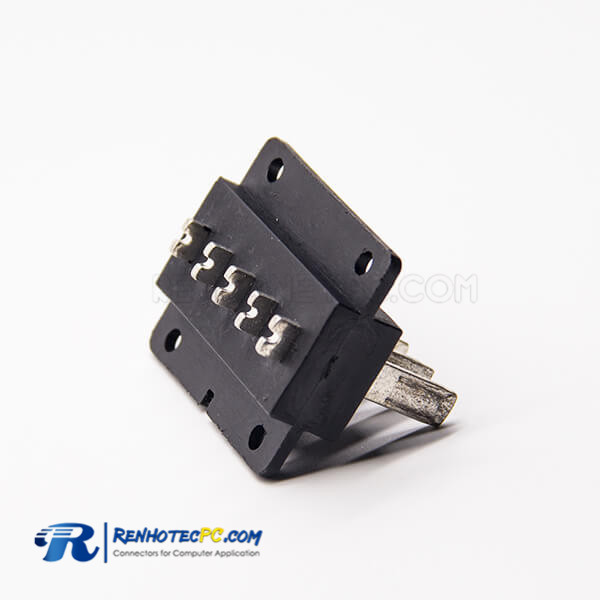

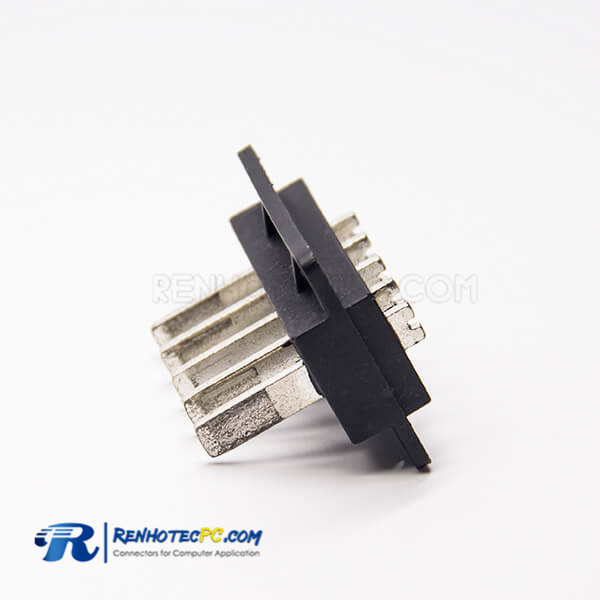

Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy

Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy
Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy Battery Connector 5 Pin PH5.0 Heavy Current Male Straight for Panel Mount Special Use for Electric Energy

Part NO.: RHT-648-1009
Tags: Notebook Battery Connector,Socket,5Pin,Male,Straight,Panel Mount,PH5.0

Features:

  • Headers available for 7.2, 10.8, and 12.0 volt rechargeable batteries
  • Receptacle connectors with solder tails or weld tabs
  • Consumer-friendly mating/unmating of battery
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get a FREE Quote

Major Technical Characteristics
Rated current 7A
Rated voltage 30VDC
Mechanical characteristics PCB mounting fixed (without accessories)
Installation angle right angle
Connector Mounting Type Board Mount
Ambient temperature ≥ -30°C ~ + 70°C
Material UL 94V-0 rated thermoplastic
