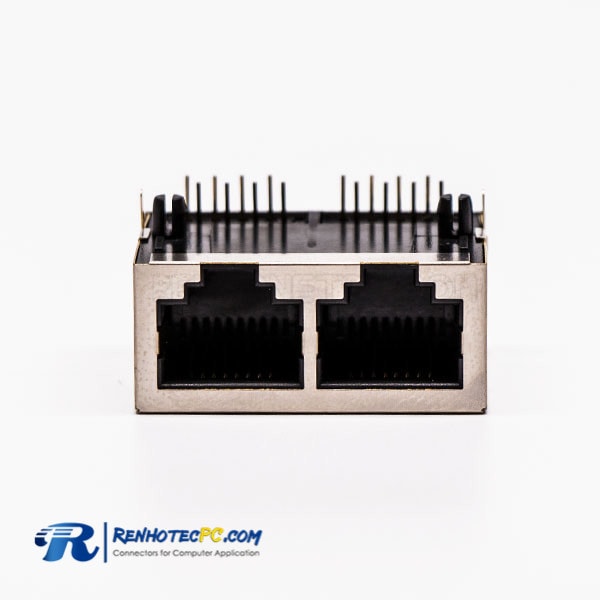

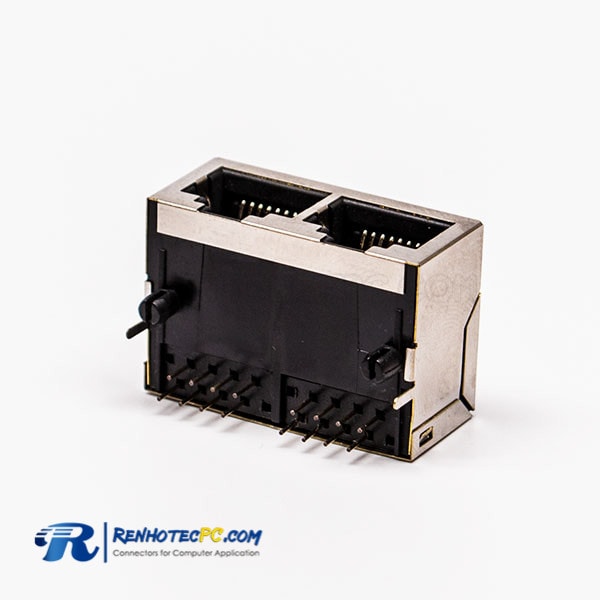

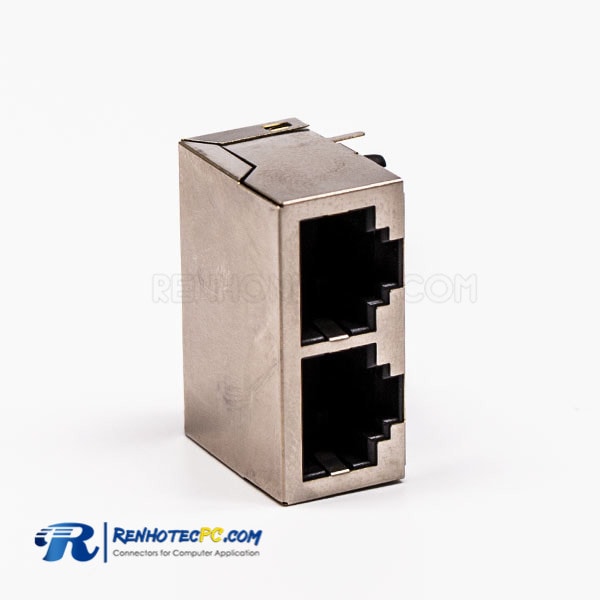

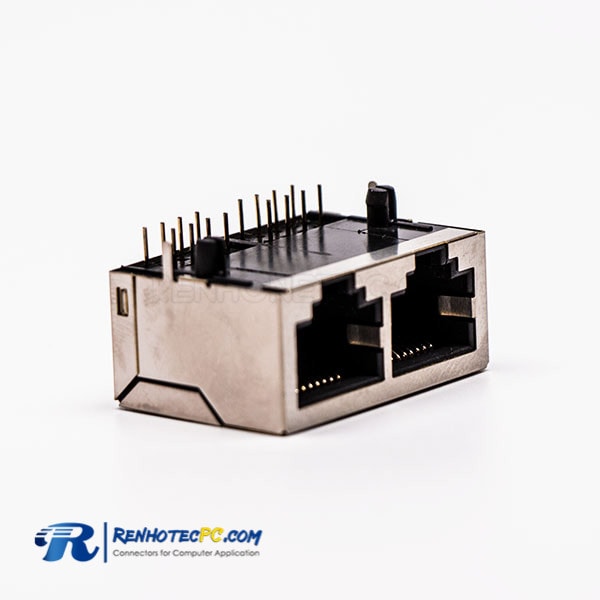

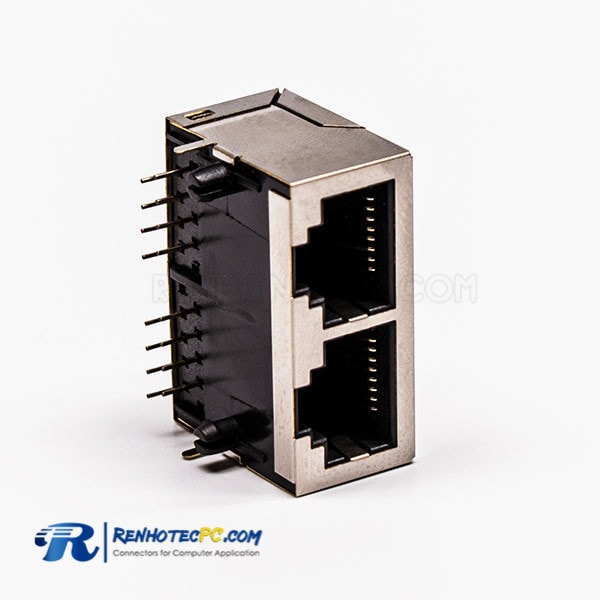

8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB

8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB
8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB 8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB 8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB 8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB 8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB 8P RJ45 Female Connectors 90 Degree 2 Port without LED and with Shield for PCB

Part NO.: RHT-620-0752
Tags: RJ45,Female,PCB Mount,8P,2 Port,Right Angle/90°,With Shield,Without LED

Features:

  • Comprehensive range for all application needs
  • Stackable side by side design
  • Supports wide variety of low-speed networking applications
  • Supports high-speed Gigabit Ethernet applications
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement
Get A Free Quote

Major Technical Characteristics
Current rating 3A continuous
Insulation resistance 500MΩ min.
Dielectric withstanding voltage 1500V min.
Voltage rating 1000V rms
Mating force 5N to 20N
UNmating force 8N to 20N
Durability 10,000 mating cycles
Operating Temperature -40°C~ + 120°C
