D-SUB Connector
IP67 D-SUB 2V2 Male D-SUB Contact solder type Connectors
Product view

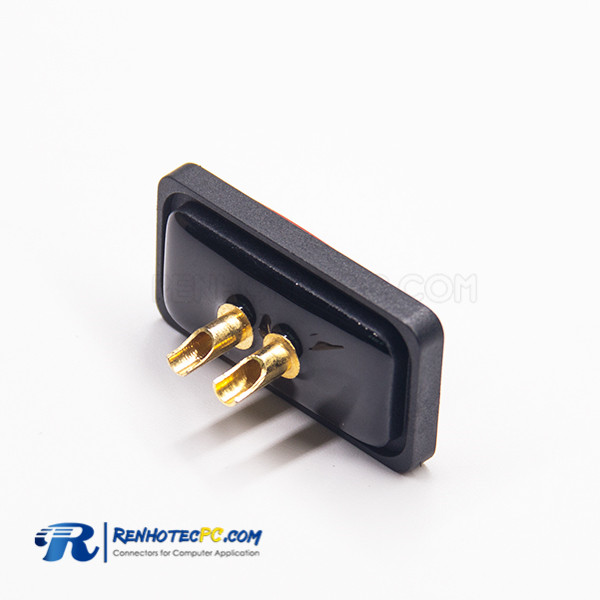

2V2 male D-SUB connector with straight orientation and solder termination.
- GenderMale
- OrientationStraight
- Termination TypeSolder Type
Include quantity, mating equipment and installation requirements.
Product data
The connection, at a glance.
Electrical
- Current Rating
- 7.5A
- Contact resistance
- 10 mOhm
- Dielectric Withstanding Voltage (Signal)
- 1000 V
- Working voltage signal
- 125 V
- Working Voltage
- 1000V
Mechanical
- Gender
- Male
- Orientation
- Straight
- Termination Type
- Solder Type
- Contact configuration
- 2v2 / 2V2
- Mounting detail
- Cable mount
- Contact construction
- Machined contacts
- Seal construction
- Interfacial seal
- Extraction force
- 30N
- Insertion force
- 30N
Environmental
- Waterproof Rating
- IP67
- Operating Temperature
- -25 to 125 °C
Before you specify
Selection guide
2V2 male D-SUB connector with straight orientation and solder termination. It uses machined contacts. An interfacial seal is included.
