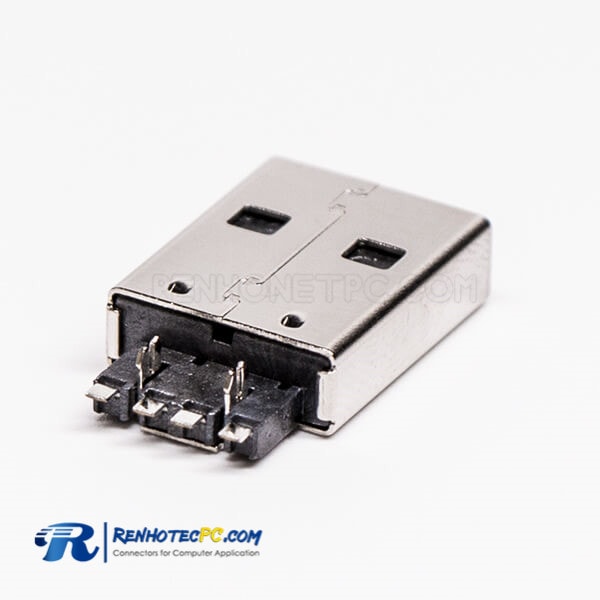

USB Male 2.0 Type A Connector Offest Type for PCB Mount

Part NO.:RHT-692-1343
Tags: USB2.0,Male/plug,Type A,Right Angled/90°,SMT,PCB Mount

Features:

  • Transfer Super Speed 480Mbps
  • Support hot plugging
  • Easy and Quick usage
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Volatage Rating 30V AC (rms)
Current Rating 1.0A MAX
Contact Resistange 30 milliohms max
Insulation Resistange 1000 megohms min
Dielectric Withstanding Voltage 500 V DC/1min
Mating force 3.57 kgf max
UNmating force 1.0 kgf min
Operating Temperature -40°C~ + 85°C
