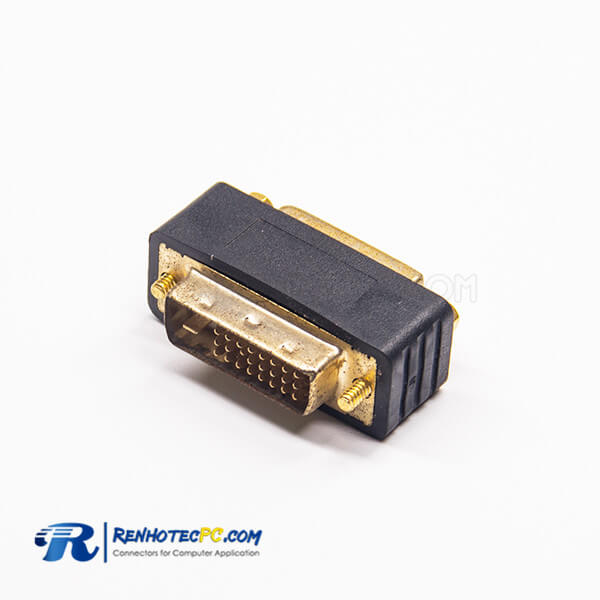

DVI Connectors Types 24+5Pin Male To Female 24+5Pin DVI Straight Short Adapter

Part NO.:RHT-681-1313
Tags:D-Sub Adapter&Gender Changers,DVI,,24+5Pin,Female,DVI,Female,24+5Pin,Straight

Features:

  • Inserts are flame-retardant thermoplastic
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Voltage Rating 250V AC/ rms 50Hz
Withstanding Voltage 1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.
Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Operating Temperature -67°F (-55°C) to +257°F (125°C)
