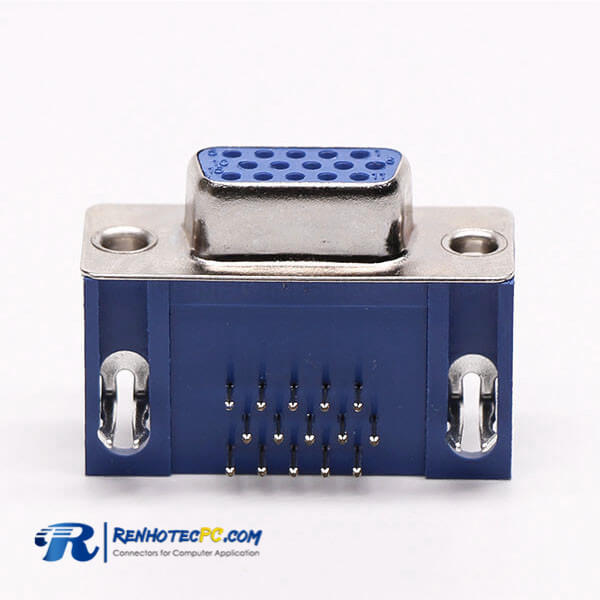

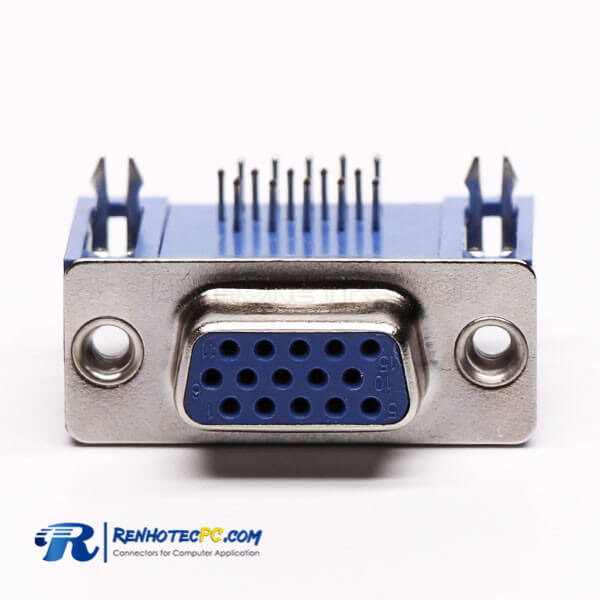

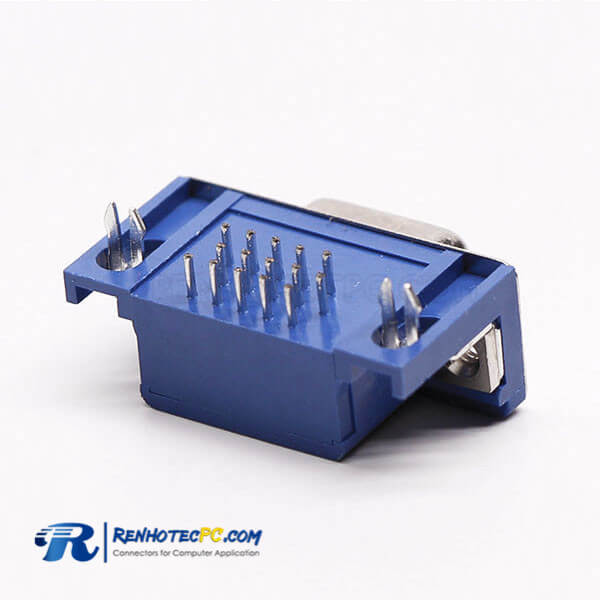

DB 15 Jack Right Angled High Density Through Hole Harpoon for PCB Mount

Part NO.:RHT-681-1196
Tags: D-sub Connector,High density,Right Angled/90°,Female/Jack,15 Pin,staking type,through Hole

Features:

  • Metal shell provides EMI/RFI shielding
  • High density design maximizes board space
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Contact resistance 10 mOhm
Current rating signal 3 A
Working voltage 60 V
Dielectric with standing voltage signal 1000 V
Insulation resistance 5000mΩ min
Extraction force <50 N
Insertion force <50 N
Mating cycles 50
Operating Temperature  -55°C~ + 105°C
