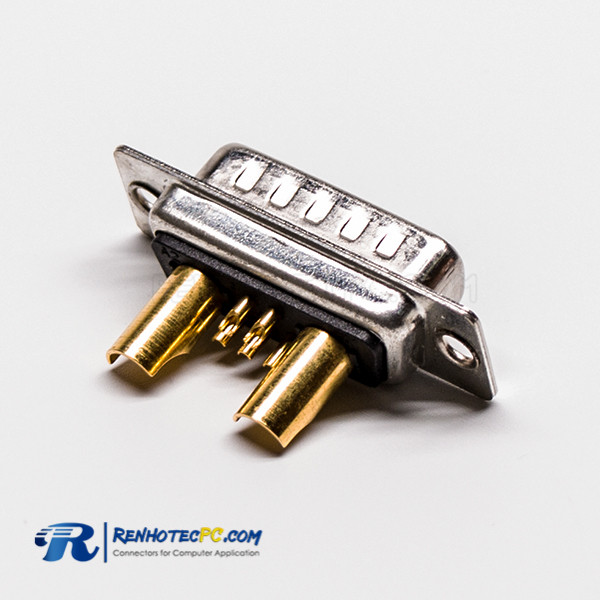

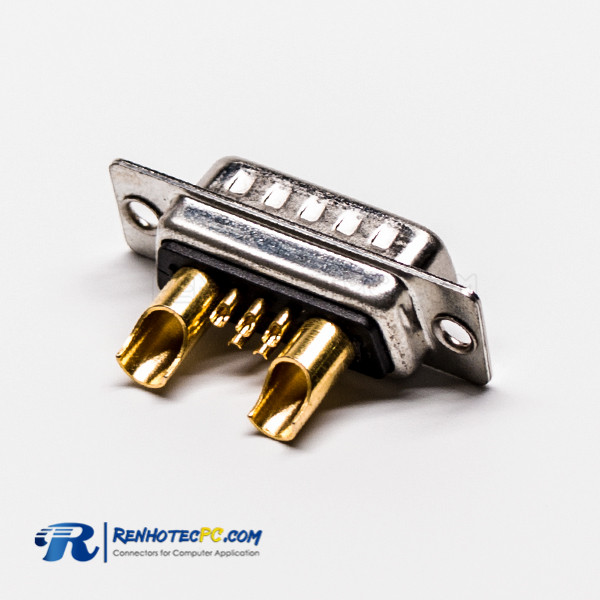

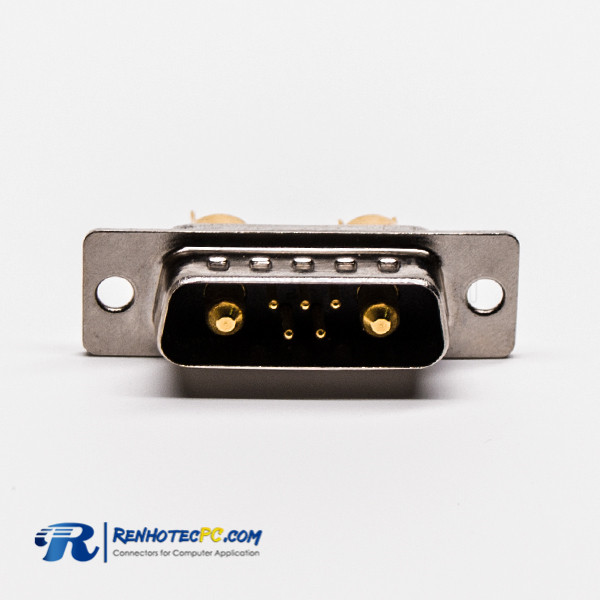

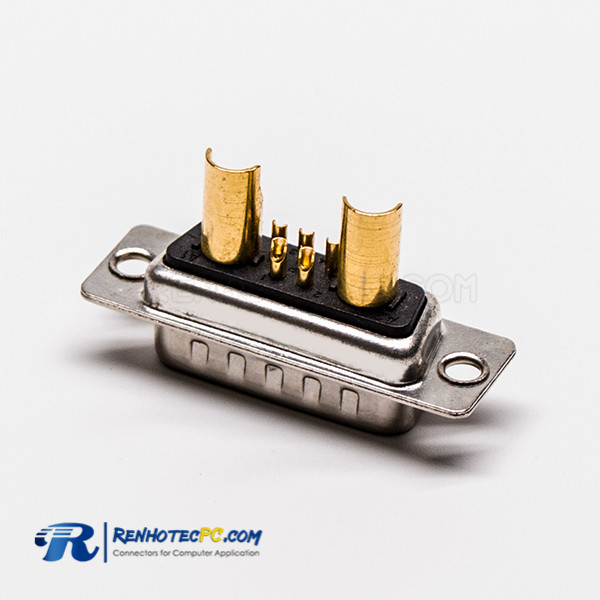

D SUB connector 9 Pin 7W2 Male Power Straight Solder Type For Cable

Part NO.:RHT-681-1222
Tags: Combo D-sub,Straight/180°,Male/Plug,Power D-sub,7w2,Cable Connector,Solder Type

Features:

  • Space saving,Cost-effective
  • Large variety of mounting options,RoHS Compliant
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Please click BUY NOW button for quantity under 100pcs and order from our online store.
For more quantity, please send us message to get FREE quote.

Specification

Major Technical Characteristics

Current Rating Signal & Power Contacts 300 VRMS at 50 Hz
Frequency range 0 -1 GHz
VSWR 1.4 (+0.04/GHz)
Characteristic Impedance 50 Ohms
Dielectric Withstanding Voltage ≥ 1000V R.M.S. at 50Hz
Insulation Resistance ≥ 5000 megaohms at 500 V D.C.
Contact Resistance ≤5 milliohms
Mechanical operations up to 500
Operating Temperature 67°F (-55°C) to 311°F (+155°C)
Delivery & Shipment

Payment Term

Place of Origin Dongguan, China
Price Term EXW / FOB / CIF
Term of Payment T/T, Paypal, West Union

Delivery Term

Lead Time 7-10 days regularly
Means of Transport Express(DHL/FedEx/UPS/TNT, etc)
Dongguan Port By Sea
Package Blister Box+Carton / PE bag+Carton
Carton/CBM 39.5*24.5*19.5 cm
49.5*24.5*19.5 cm
47*41*21 cm
34*34*30 cm
