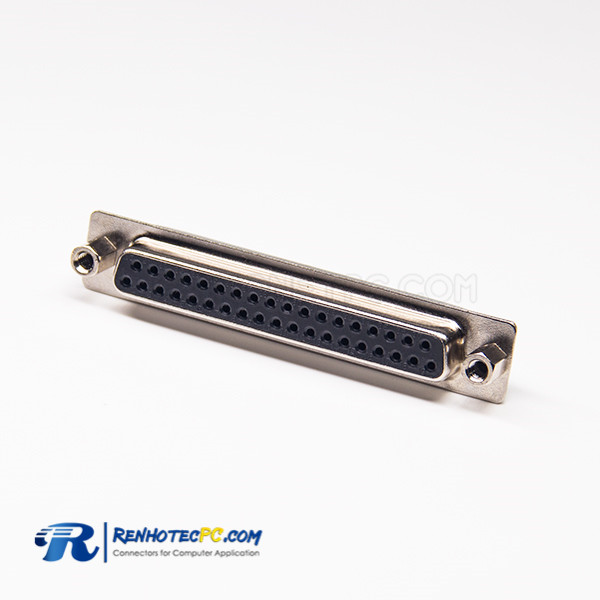

D sub 37 pin Connector Female Stamped Pin Solder Type Connectors

Part NO.:RHT-681-1252
Tags: IP20 Standard Type,Two rows,Unthreaded,D sub,Female,Solder Cup,Tinning,straight,Stamped Pin,37 Pos,Cable

Features:

  • Industry standard interfacing RS232 and RS449 mating configurations per EIA standards
  • Inserts are flame-retardant thermoplastic
  • 12 Months Quality Insurance
  • Free sample available for quality test
  • Can be Customized for unique material or performance requirement

Major Technical Characteristics

Voltage Rating 250V AC/ rms 50Hz
Withstanding Voltage 1000V AC/ rms 50Hz for one minute
Insulation Resistance 1000MΩ at 500V DC
Contact Resistance 20 mΩ max.
Single Contact Insertion Force 1.19 lb. (0.54 kg.) max.
Single Contact Withdrawal Force 0.13 lb. (0.06 kg.) min.
Operating Temperature -67°F (-55°C) to +257°F (125°C)
